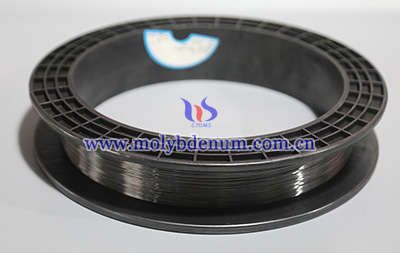

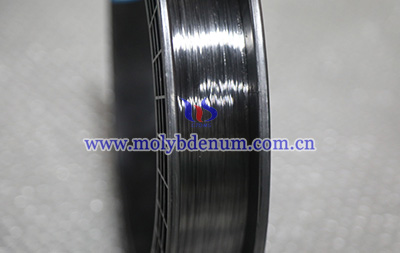

High Temperature Molybdenum Wire
High temperature molybdenum wire is a specialized metallic wire designed to maintain structural integrity, electrical conductivity, and chemical stability in extreme thermal environments. With a melting point of 2620 °C and outstanding thermal resistance, it is widely used in high-temperature furnaces, aerospace components, glass sealing, crystal growth, and various heating elements.
1.Key Features
Excellent High-Temperature Strength
Performs reliably at temperatures up to 1900–2000 °C in vacuum or inert atmospheres without deformation or sagging.
Outstanding Thermal Stability
Maintains dimensional integrity and resists recrystallization over prolonged heating cycles.
High Purity (≥99.95%)
Ensures low outgassing, minimal contamination, and excellent electrical and thermal conductivity.
Good Workability
Can be coiled, cut, bent, or spot-welded into various shapes depending on application needs.
Oxidation Resistant in Protective Environments
Performs well in vacuum, argon, nitrogen, or hydrogen atmospheres; not recommended for direct air exposure above 400 °C.
 |
 |
2.Applications
Vacuum Furnace Heating Elements & Support Wires
Used in thermal shielding, heating coils, and structural frameworks.
Sapphire and Semiconductor Crystal Growth
Employed as seed holders, lifting wires, and thermal mounts.
Glass-to-Metal Sealing
Ideal for connecting molybdenum feedthroughs in glass or ceramic assemblies.
Aerospace & Nuclear Applications
Utilized in high-temperature components requiring radiation resistance and thermal strength.
High-End Lighting and Electron Devices
Acts as filament supports, lead wires, and mounts in halogen lamps and electron tubes.
3.Technical Specifications
| Purity | ≥99.95% |
Diameter Range |
0.025 mm – 3.0 mm (customizable) |
Melting Point |
2620 °C |
Recrystallization Temperature |
~1000–1200 °C (depending on grain structure) |
Tensile Strength |
900–1600 MPa (varies by size and condition) |
Surface Finish |
Black, bright (cleaned/polished) |
Form |
Spool, straight cut, or custom shapes |
